Machines, Tools & Accessories for Lapidary

The typical type of machines are as follows.  The modification of machine according to the change of processing is possible.  Click the name to see the details.

Machines, Tools & Accessories

Gems & Rock Saw

Model No.BSW-10 (Slab Saw)

<Specification>

  • Size(mm): 1000(W)x1400(D)x1290(H)
  • Motor: 2HP, 220V. 2P (380V 3P)
  • Shaft(mm): 25.4
  • Diamond saw(mm): 500x3.2t
  • Revolution: 1750 rpm
  • Inverter speed motor: 25W 220V, S8125GT
  • Cooling pump: 220V, 7W 1.7m 800 งค /hr
  • Vise speed inverter: FR 2520 0.2K

<Characteristics>

  • For slabbing a large rock or concrete with a uniform thickness
  • Efficient working by automatic shifting
  • P.V.C. cover
  • Automatic stop after cutting rock core
  • Speed adjustable depending on the characteristics of a rock or a specimen
  • Easy attachment/ detachment and overload prevention
  • Recirculation of cooling water in saw box
  • Tightness type for the maximization of noise prevention

<Accessories>

  • Diamond saw blade for rock slabbing : 500x3.2t mm, 1 ea
  • Cooling tank: 1 set

< Please click the below photos for video watching of BSW-10 >



< Diamond saw - vise>                                                            <Slab cutting>


Model No.BSW-20

<Specification>

  • Size: 600x500x800
  • Motor: 2 hp, 380 V
  • rpm: 2500
  • Shaft : 1 inch
  • Vise: 150x80x250
  • Diamond saw: 10 inch

<Characteristics>

  • Cutting rock by vise fixing
  • Automatic supply of cooling water
  • Shifting by a lever
  • Fixed or movable type vise
  • For cutting rock core or concrete, or for cutting metallic material
  • Efficient working by automatic shifting of vise
  • Maintaining right angle by 2 vises during rock core cutting
  • Variable cutting speed (D/C motor)
  • Separately installed cooling pump for easy cleaning


Model No.BSW-30

<Specification>

  • Size: 400x400x650
  • Motor: 1 hp, 3 P 220V
  • Vise: 200x350
  • rpm: 1750
  • Shaft : 5/8 inch
  • Diamond saw : 10 inch x 1.2t

<Characteristics>

  • Rock shifting with vise
  • For cutting metal or ceramic
  • Convenient rock core cutting by V-block
  • Cooling water connection for water tap
  • Cutting length adjustment by a guide (for core cutting)


Model No.BSW-40

<Specification>

  • Size : 600x430x530
  • Motor: 1 hp, 220 V, 380 V
  • rpm : 3600
  • Shaft : 5/8 inch
  • Diamond saw: 8~10 inch x 1.2t

<Characteristics>

  • Cutting rock or jewel to uniform size
  • For cutting metal or ceramic
  • Recirculation of cooling water in the tank


Model No.BSW-50

<Specification>

  • Size :200x500x200
  • Motor: 1/4 hp, 220 V
  • rpm: 3600
  • Shaft: 5/8 inch, stainless steel
  • Diamond saw: 6 inch x 0.3t, 0.6t
  • Saw box : P.V.C.

<Characteristics>

  • For cutting rock or jewel to small size
  • For cutting rock or ceramic
  • Small size to handle and move easily
  • Using slide glass by vacuum holder (option)
  • Convenient for minute working with thin saw
  • Small forces on the cutting part

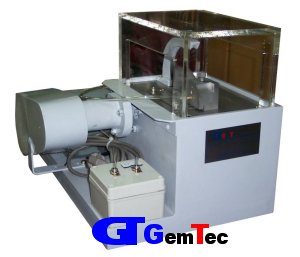

Model No.BSW-51

<Specification>

  • Size: 200x500x200 (mm)
  • Motor: 1/4 hp, 220V
  • Shaft: 5/8 inch
  • Revolution: 3,600 rpm
  • Diamond saw: 150 mm
  • Vacuum pump: 1 set

<Characteristics>

  • For making thin slab
  • Attachment of material by vacuum after bonding to slide
  • Cooling water supply by diamond saw blade itself
  • Diamond saw blade
  • Transparent acrylic cover
  • Guide rail for easy sawing


Model No.BSW-52

<Specification>

  • Size: 600x600x650 mm
  • Table size: 300x400 mm
  • Motor: 1 hp, 220 V
  • Shaft: 5/8"
  • Revolution: 1700 rpm
  • Diamond saw: 250x2 mm t (fro rock)

<Characteristics>

  • For regular slabbing of rock
  • Cooling water supply from cooling water tank to saw blade
  • Transparent acrylic cover
  • Rock vise
  • Table type machine
  • Waterproof switch


Model No.BSW-60

<Specification>

  • Size: 1400(W) x 900(D)x1200(H)
  • Diamond saw: 6"
  • Cutting motor: 1 Ea
  • Rotating motor: 1 Ea
  • Transferring motors: DC 2 Ea

<Characteristics>

  • For slabbing cubic zirconia (CZ), gemstones, rocks
  • Slab thickness :
    From 1mm to all the points within transferring distance
  • Full automatic cutting after material fixing and thickness setting
  • Easy speed adjustment


Model No.BSW-61

<Specification>

  • Size: 900(W) x 600(D) x 1500(H)
  • Cutting motor: 1 Ea
  • Transferring motor: DC 1 ea

<Characteristics>

  • Recutting the slabbed material to a regular square
  • Cutting size: From 1mm to 15mm
  • Automatic stop after cutting
